Spigot Truss

General Details

Are you looking for a high-quality, high-quality, and affordable truss to meet your performance or party needs?

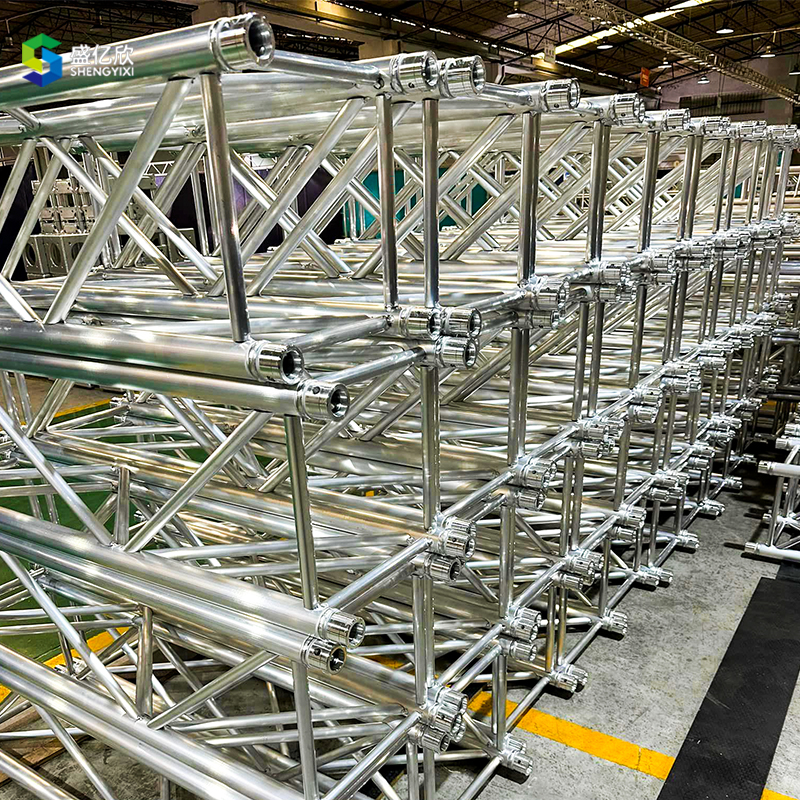

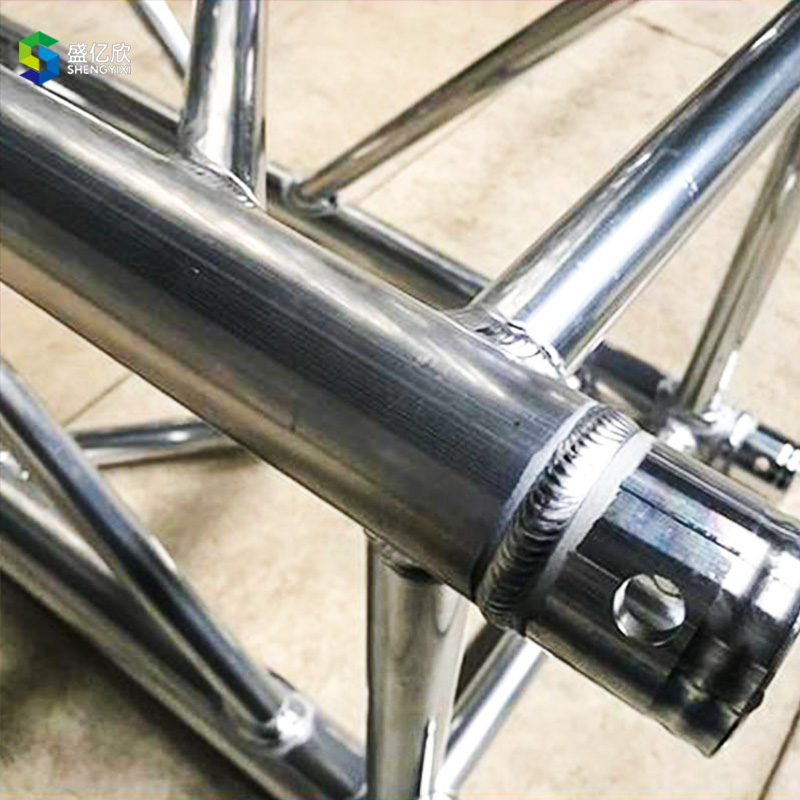

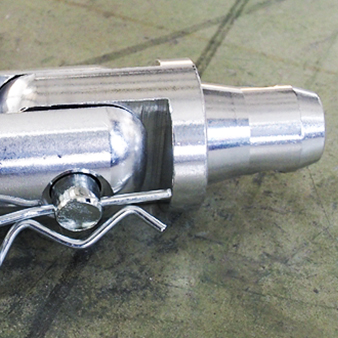

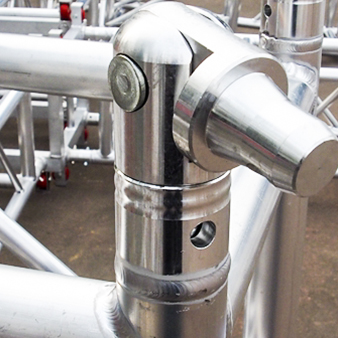

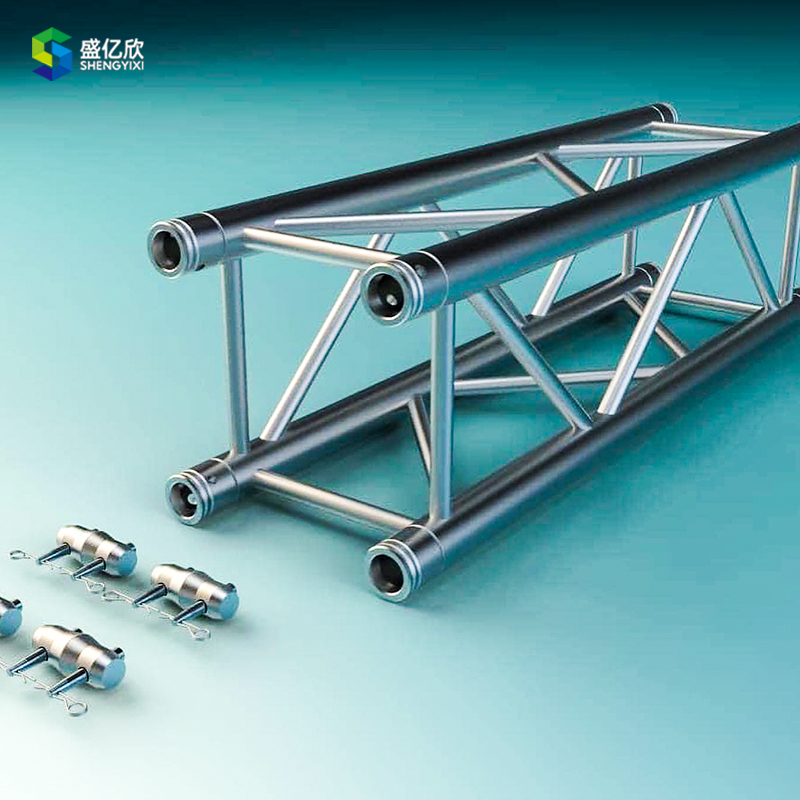

Truss (also known as lighting or stage truss) is a modular framework for creating dynamic displays. Truss structures are built from interlocking aluminium truss pieces to be easily transported. Each piece of truss is supplied with a set of spigots, pins & clips that make it quick and easy to connect together.

The trusses sold by Sheng Yixin can definitely make your activities more diverse.


Use:

1. Small aluminum alloy frames can be used for display stands, advertising stands, and background stands.

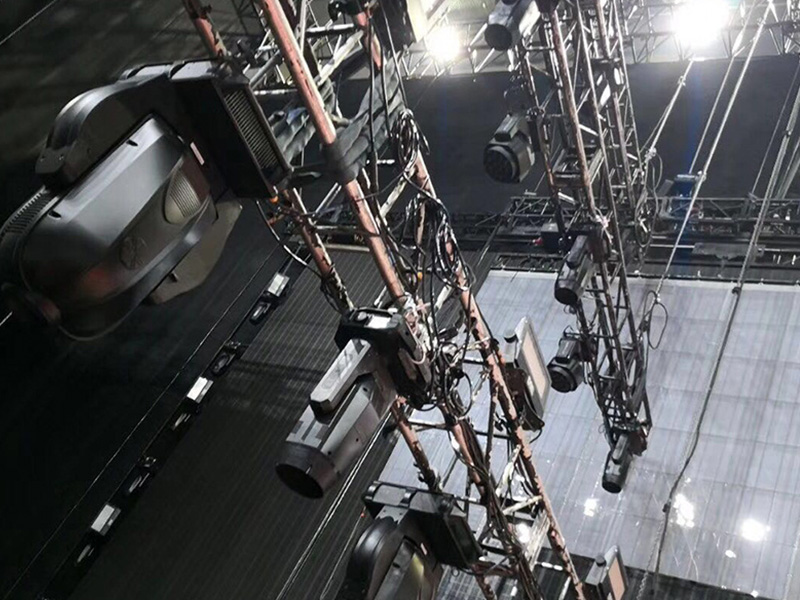

2. Medium-sized casting frame can be used for stage lighting frame

3. Large aluminum alloy trusses can be used for large aluminum alloy stage lighting frames, gantry frames, and tent room frames.




Features STRUCTURE Size

1) Ergonomically friendly

2) TUV – SGS certified. Load tested + inspected.

3) Safe and big loading capacity

4) No deflection in its connection point

5)   Most sizes stock immediate shipping

6)   Fast and easy to assemble

7)   Powder coating or a high gloss/hand polished design

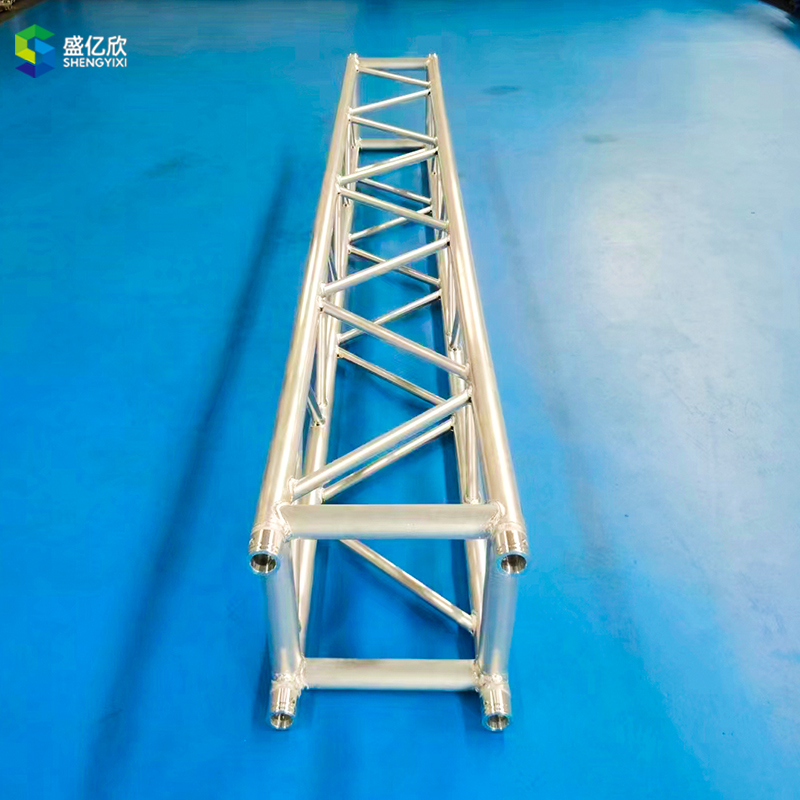

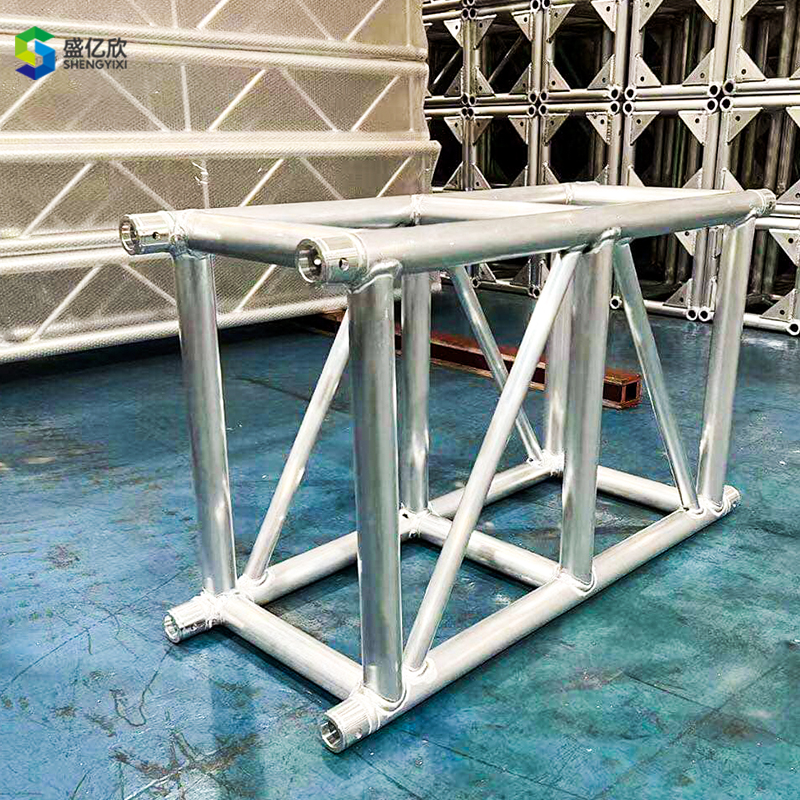

CS4060

   Section: Square400*600mm

   Main tube: 50*3.0mm
   Braces: 50*2.0mm
   Inelined tube: 25*2.0mm
   Length: 0.5/1/2/3/4m
   Material: Aluminum6082-T6
Span(m)4m6m8m10m12m14m16m18m20m
(kg/m)70043027018713092685030
(mm)512335480102151170203
(kg)2350158013001150850670565500400
(mm)1123416579103138172215

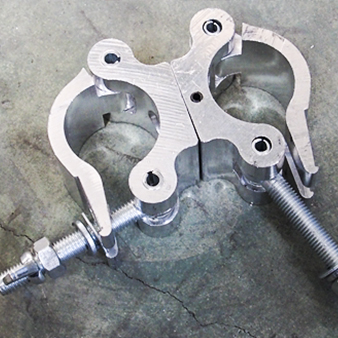

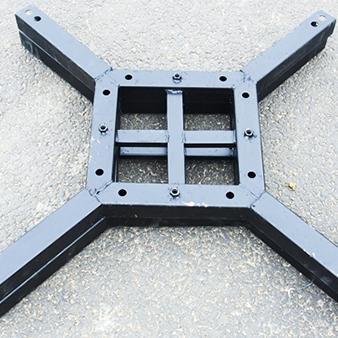

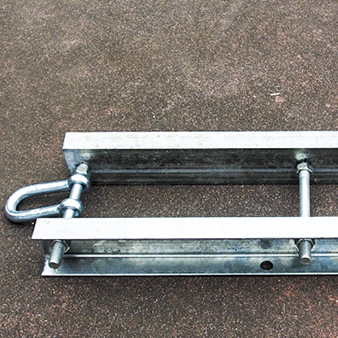

ACCESSORIES
