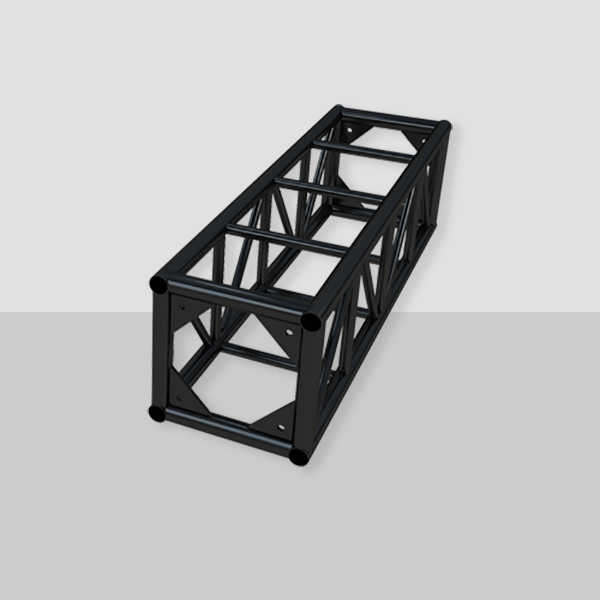

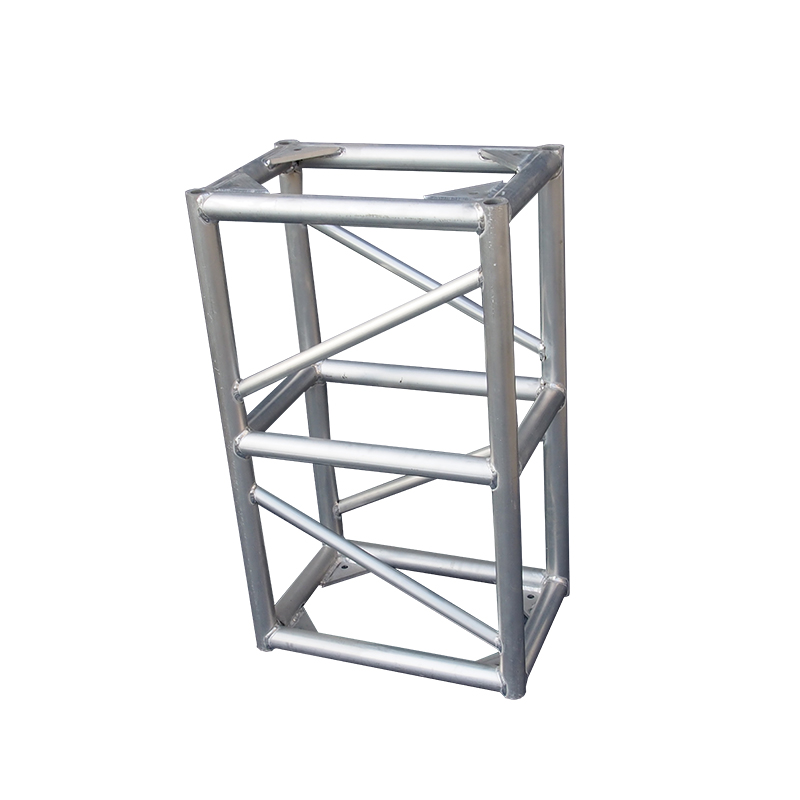

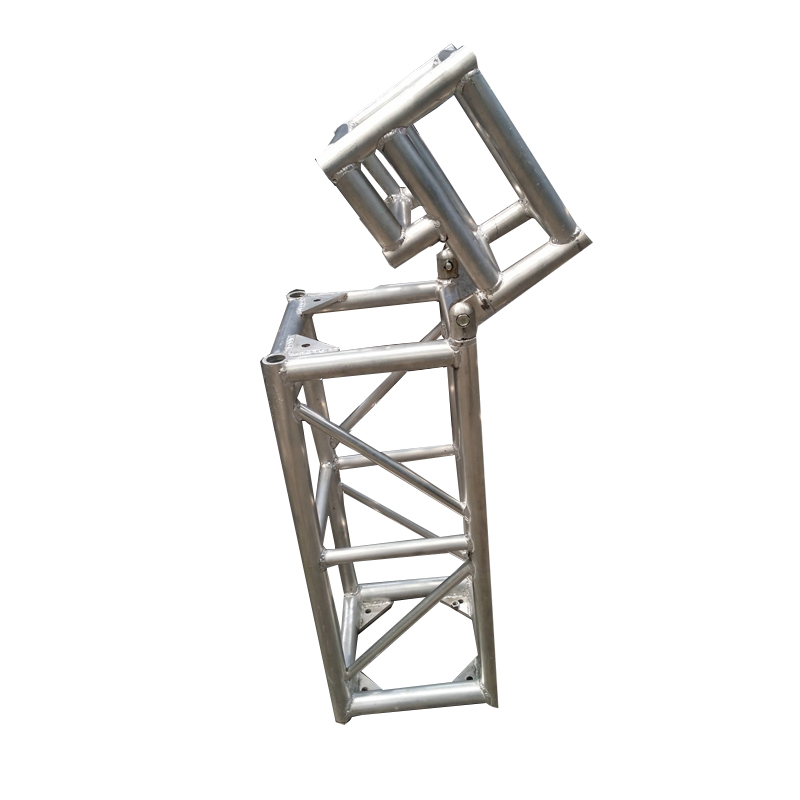

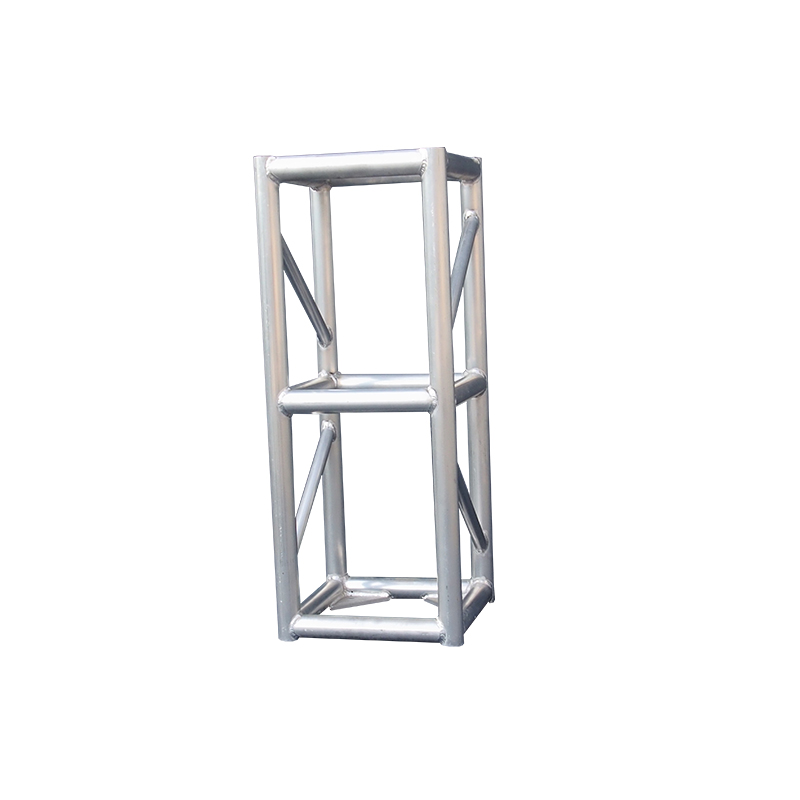

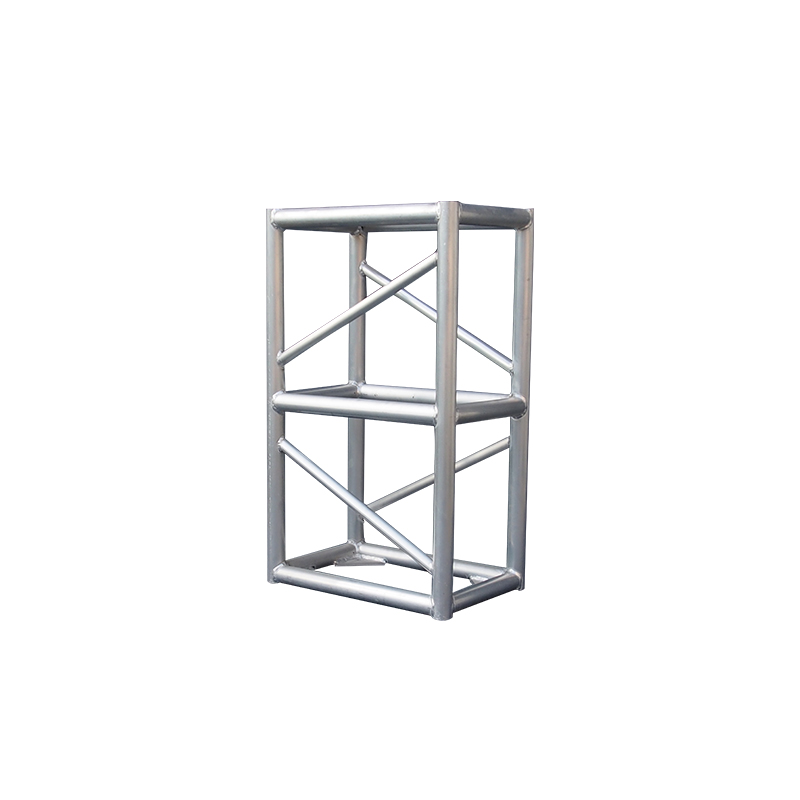

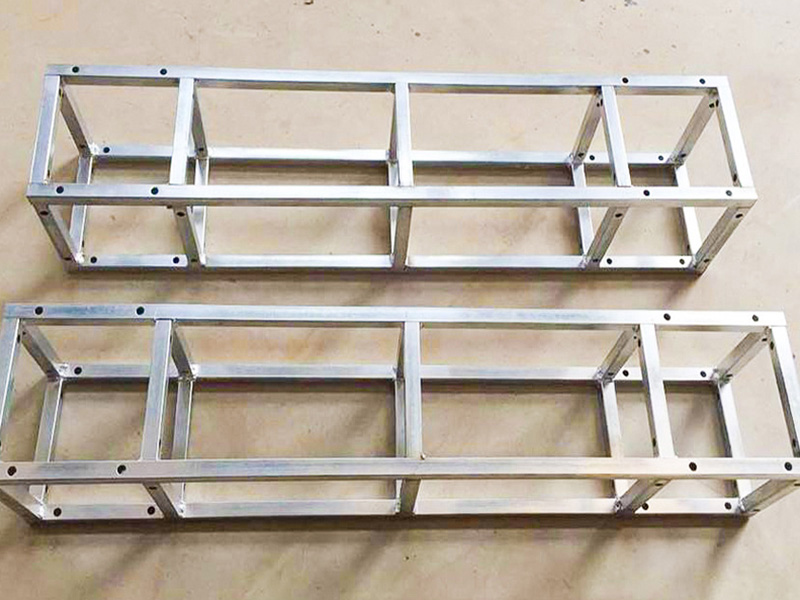

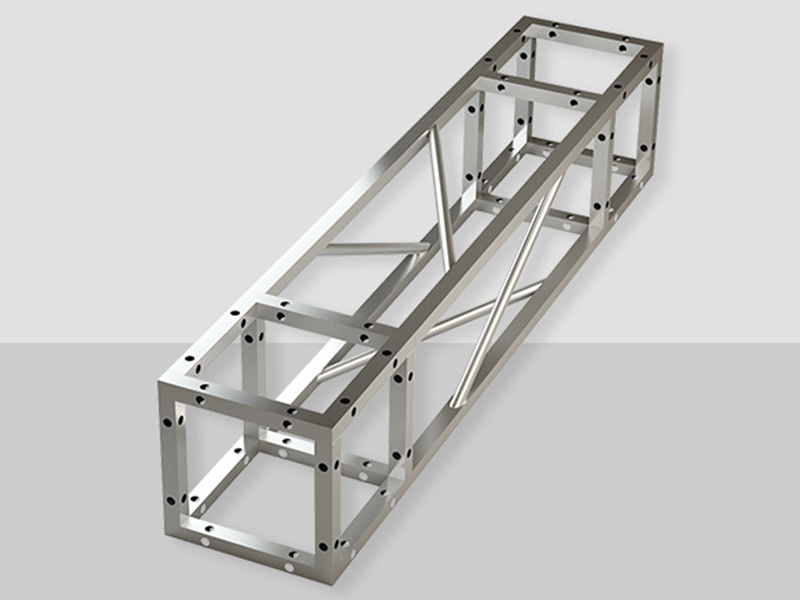

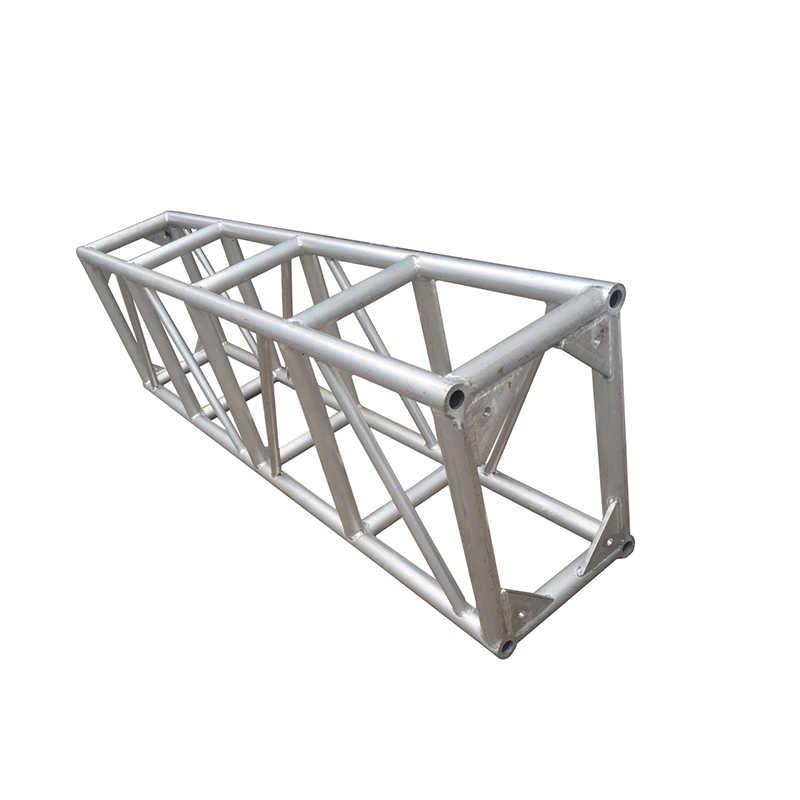

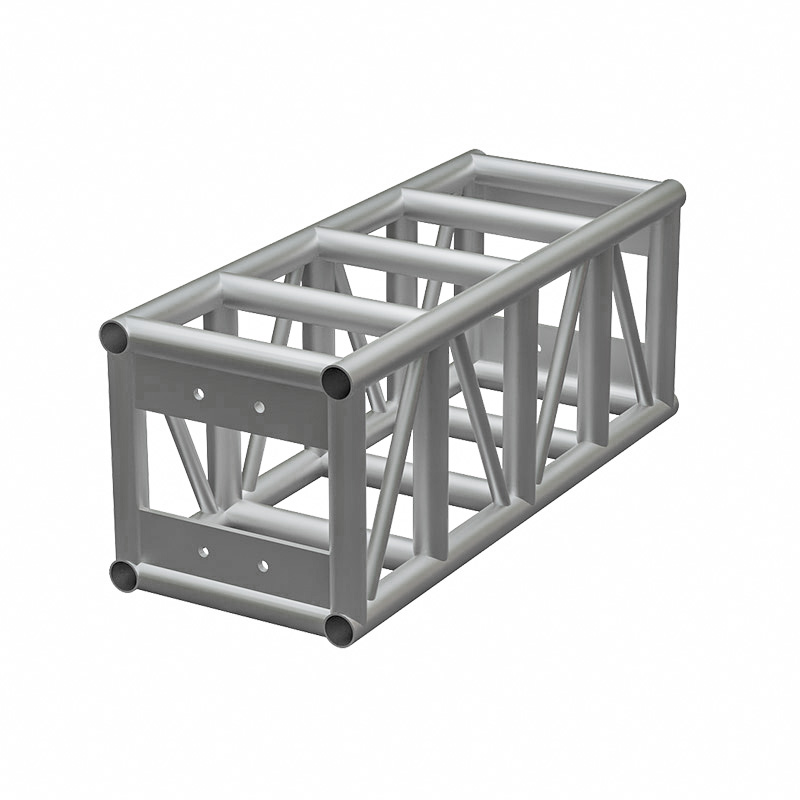

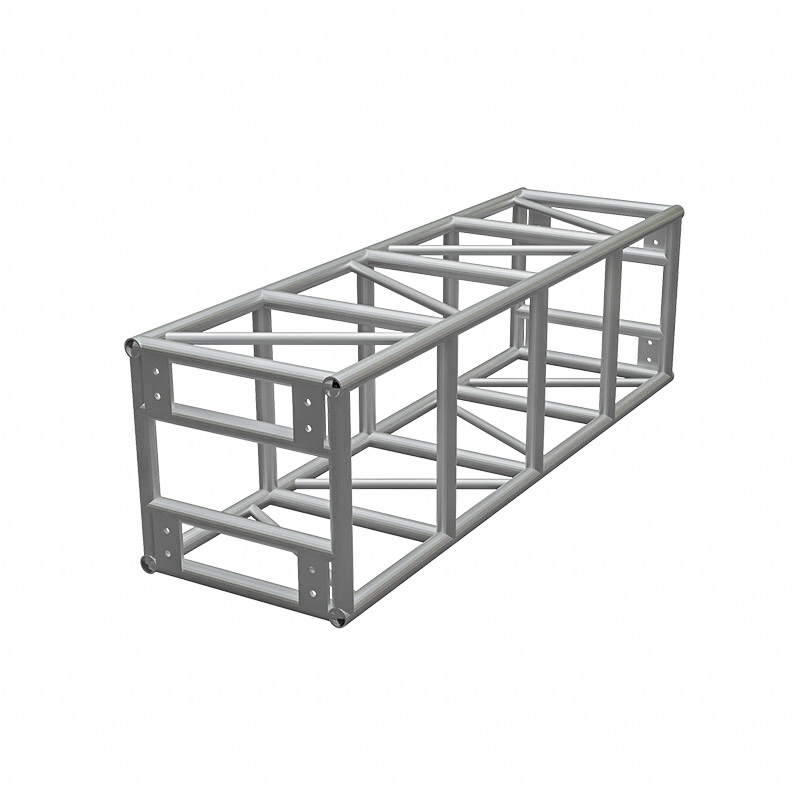

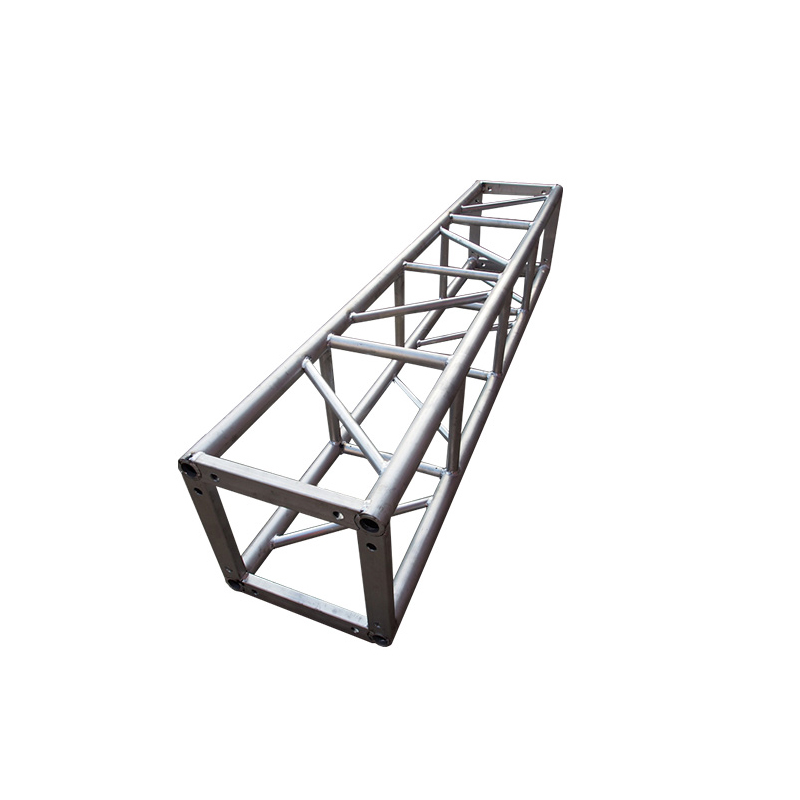

Screw Truss

General Details

Are you looking for a high-quality, high-quality, and affordable truss to meet your performance or party needs?


When installing the screw holder, all screw structures are used for assembly, which incurs high labor costs but has a simple structure and good load-bearing capacity. The screw aluminum alloy light frame has undergone certain market validation, and ordinary customers recognize and accept the structural concept of screw truss. When installing the plug bracket, it is directly docked using a plug method, which is simple and convenient, greatly saving labor costs and improving work efficiency. It is easy and fast to build and dismantle in one activity. The appearance of the bolt rack is beautiful and it has strong load-bearing capacity. The purchase cost of bolt racks on the market is higher than that of screw trusses.


The trusses sold by Sheng Yixin can definitely make your activities more diverse.



Features STRUCTURE Size

  1) Compact, light self-weight

  2) Great strength to weight ratio

  3) Safe and big loading capacity

  4) No deflection in connection points

  5) Smooth Welding points

  6) CE, SGS & TUV certificated


BS4060

   Section: Square400*600mm

   Main tube: 50*3.0mm
   Braces: 50*2.0mm
   Inelined tube: 30*2.0mm
   Length: 0.5/1/2/3/4m
   Material: Aluminum6061-T6
Span(m)4m6m8m10m12m14m16m18m
(kg/m)62537023013070503720
(mm)12335480102151370570
(kg)18001200700650450300250200
(mm)23416579103138164188


BS30

   Section: Square400*600mm
   Main tube: 50*3.0mm
   Braces: 50*2.0mm
   Inelined tube: 30*2.0mm
   Length: 0.5/1/2/3/4m
   Material: Aluminum6061-T6
Span(m)4m6m8m10m12m14m16m18m
(kg/m)62537023013070503720
(mm)12335480102151370570
(kg)18001200700650450300250200
(mm)23416579103138164188


BS40

  Section:Square: 400*400mm

  Main tube: 50*3.0mm

  Braces: 30*2.0mm

   Inelined tube: 25*2.0mm

   Length: 0.5/1/2/3/4m

   Material: Aluminum6061-T6

Span(m)2m3m4m5m6m8m10m12m
(kg/m)1560860500280150805028
(mm)61322416598136151
(kg)180016001200750450300200100
(mm)111834588390115129
